Tag Archives: teabowl

8th Wood Firing Photo Record

This post is a photo record with comments, in order to organize and retain my thoughts and observations about the 8th firing of the wood kiln. I always think I’ll remember until the next firing, but never do. So, if you get into this, beware there are a LOT of pictures, some of which may seem redundant. There are examples of most of the pots from the firing, minus teabowls and some others which are not photographed yet.

The 8th firing was a charm overall, with many good pots, some bad, and some that will get refired. Kiln was fired in oxidation primarily. We stoked once every 30 minutes for 2 1/2 days, then once every 20 minutes the last half day.

– Front was nicely melted, nice even gradient to the rear of first chamber, E-Karatsu was about ideal. Cone 12 at hottest front down to cone 6 at coolest rear.

– Front chamber behaves like anagama. No significant temp gradient from front to back of each setting. Next firing, will pack kiln by eliminating the space between settings, leaving horizontal space for flame travel. One long setting from front to back of first chamber.

– Ame yu better at low temps. Load rear to mid chamber.

– Ao yu needs more heat, mid to front chamber.

– Large platters go midway to back of front chamber. Too much ash up front.

– Firebox wares are very nice in a three day firing. Great place for Shino, under cover to avoid ash in pots.

– Rear chamber fires fast when preheated for 3 days. Jumped from 1044C to 1344C in four stokes, a little over an hour. Care must be taken to spend more time soaking at high temp, because rear chamber high temp wares not quite mature (surface changes only), clay not melted well. Spend 3 or 4 hours firing off rear chamber, slowly, to get inside the pots.

– Rear chamber fires very evenly front to back, and top to bottom. Pick a temp to fire at and load accordingly. Don’t expect a significant gradient.



Spring Firing Results

Ok, lots of things to say about this last firing, but with the studio show starting tomorrow I just don’t have time for a long post. Here are pictures instead, commentary and contemplation about these results will follow in a few days…

At long last…

… some pictures of new fired/finished work. Finally got my brightness and white balance issues resolved and took a few pictures to share with everyone.

I hope you enjoy them…

A pot only a potter can love…

This last wood kiln firing was a real disaster. All of my large pieces cracked or collapsed completely, and all of the smaller work ended up under-fired badly. The upside to this is that they can all be refired, and I just finished the 2nd of 3 refire loads in the gas kiln this morning.

From the first refire load, my favorite pot is a porcelain teabowl glazed with rice straw ash glaze. I don’t normally work in porcelain, but in my search for bodies that vitrify a little better than the local clays, I’ve started using partly or mostly porcelain in some of my work. This particular bowl is porcelain with as much feldspar sandstone mixed in as I could manage, and still have it wedge-able.

In the wood firing it was in a spot that got a lot of fly ash, and in fact a lot of flaky ash collected inside the bowl. Making sure not to dump this, I saved it for the gas kiln and fired it to cone 11 flat. All of that ash melted really nicely, mixing with the rice straw ash glaze for some nice color.

There are several bloats on the interior, but none really fragile or severe. These bloats and the blues and greens on the interior really remind me of some the old Karatsu bowls with their warty bloated surfaces and subtle coloring of fly ash on rice straw ash glaze. Another nice thing about this pot: the fire color from the wood kiln was not lost in the gas firing. There is a nice gold luster on the  melted surface of the bare porcelain body.

Bummer…

This just made me sad when I saw it this morning. We had a LOT of rain over ten last 36 hours, and I think the footers sank a bit, tilting the stack forward, then dumping it. This will take some time to clean up.

** Just one quick amendment to this post: on re-reading the post and comments, I realized that I may have mislead people to believe that the stack (chimney) went over. Not so, thankfully. Just the stack of wood. No damage to the kiln other than a few scratches to the insulating top coat, and about 5 unlucky shelves that had been sitting right where the wood struck.


-Posted from iMike

Location:Taku, Saga, Japan

WIT 2012: Okamoto Sakurei

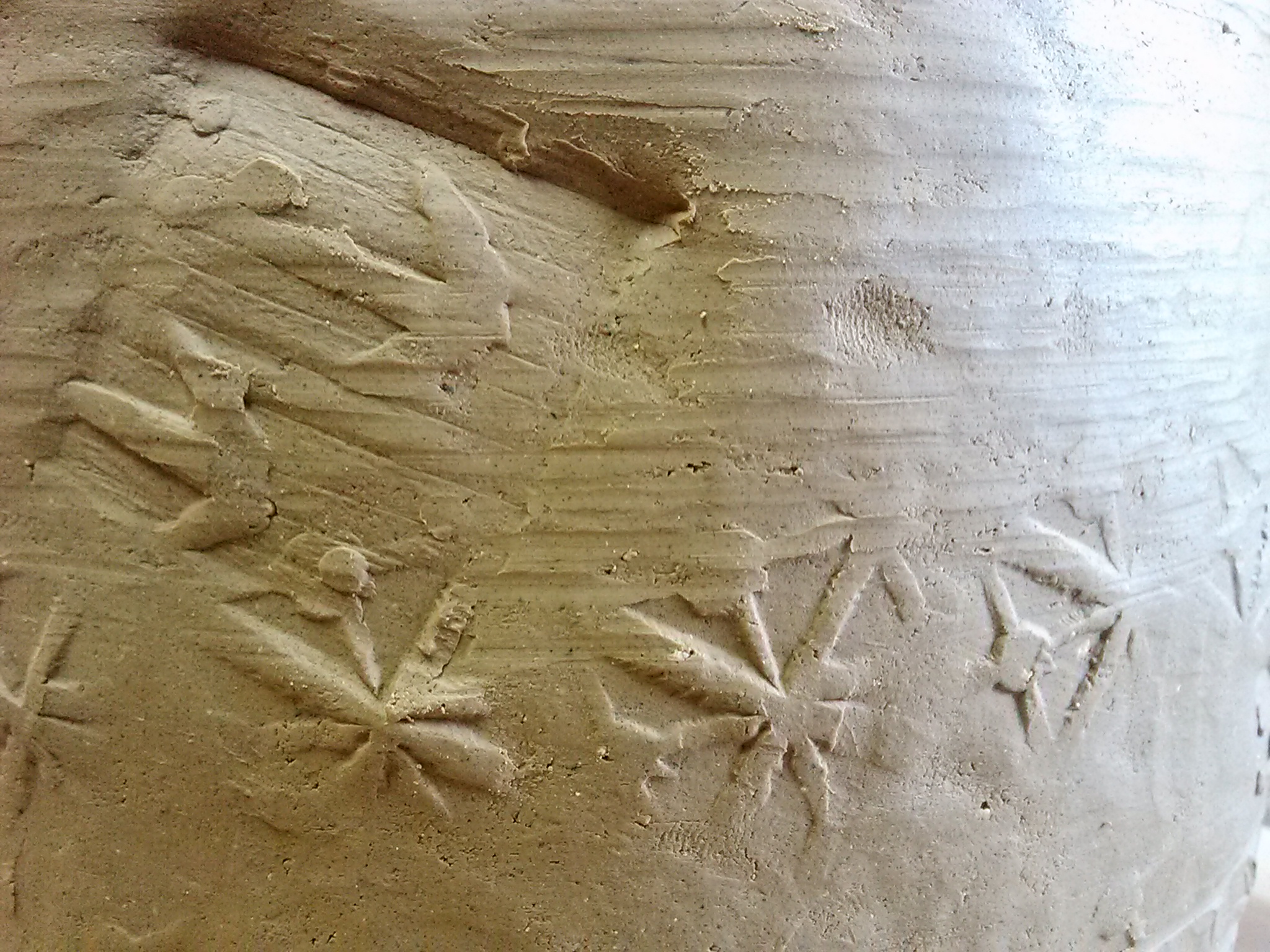

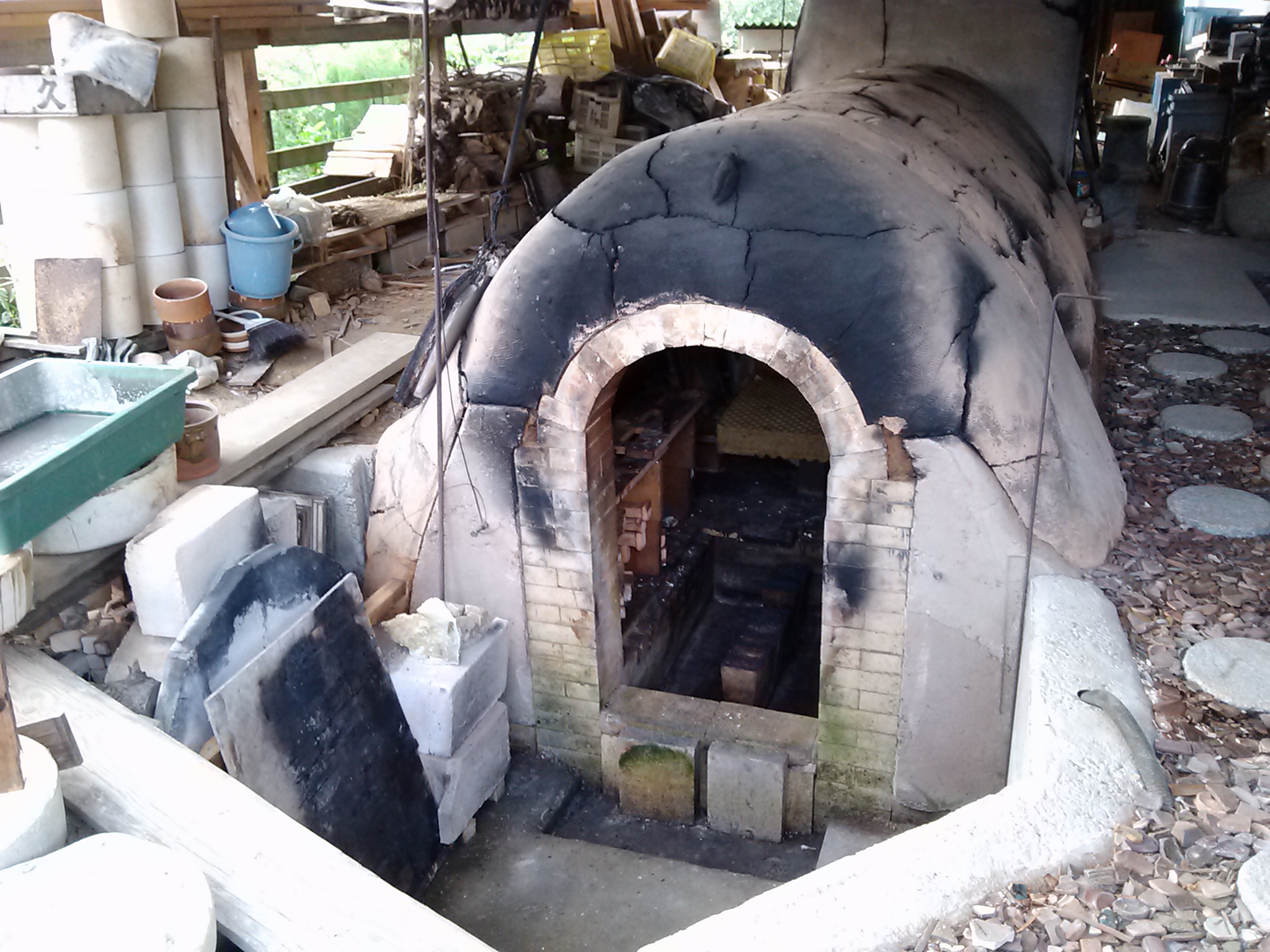

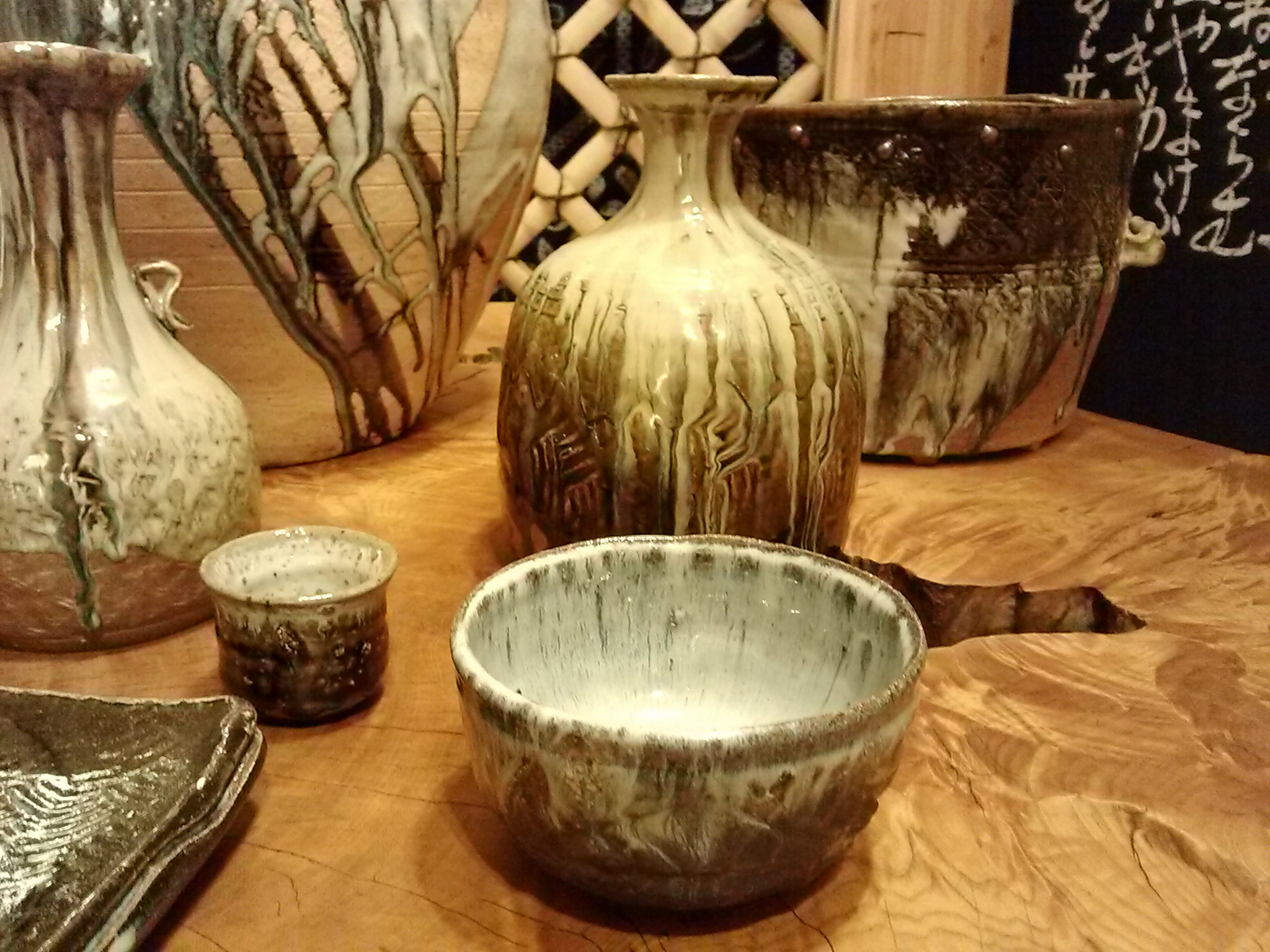

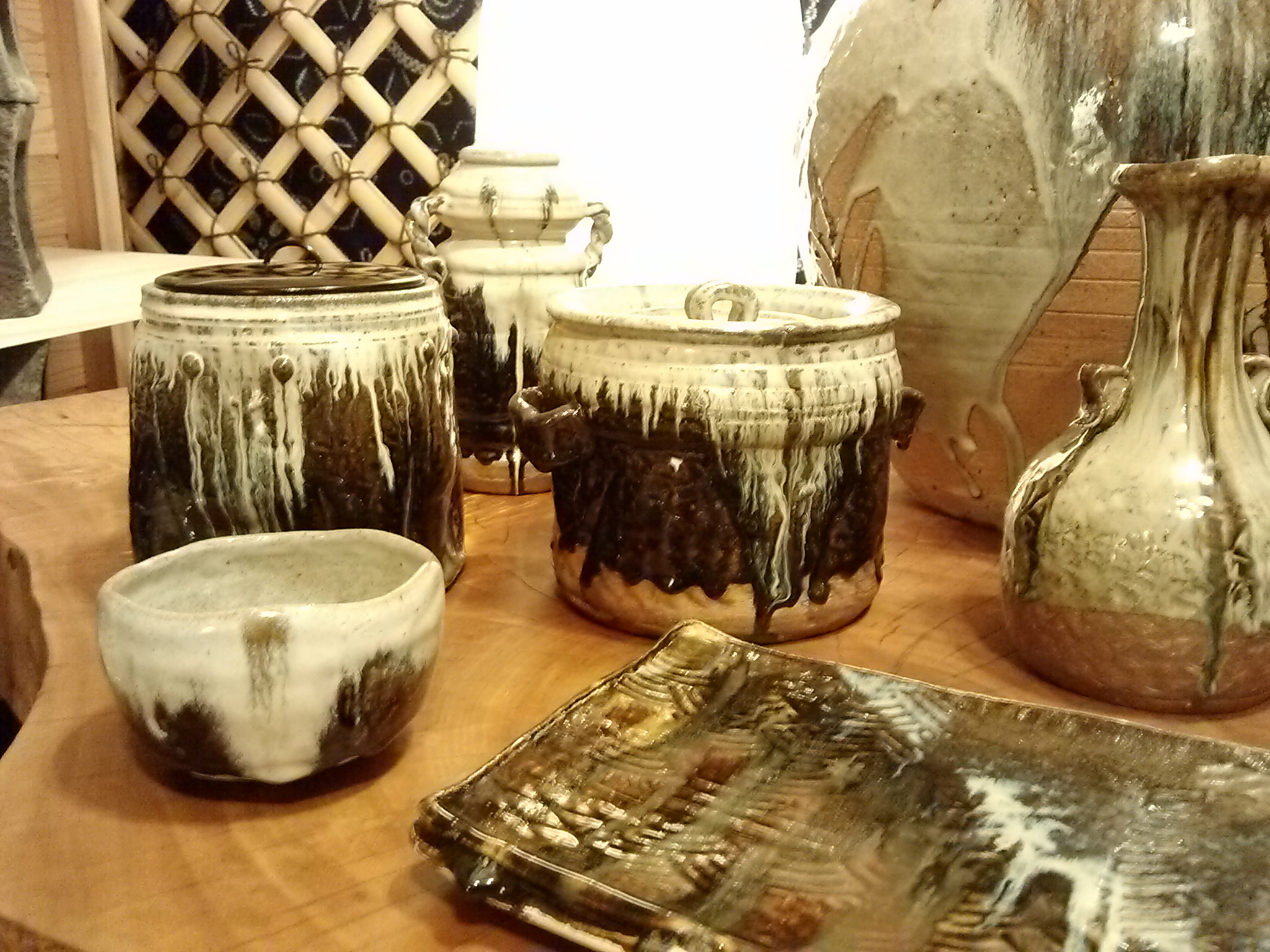

During the fourth and fifth days of the Workshop in Taku 2012: The Simple Teabowl, we were treated to pottery demonstrations by Okamoto Sakurei. He made a variety of items for us using a variety of techniques. On the afternoon of day four, we visited his studio and showroom and he honored us by allowing us to view some of the older pots in his personal collection. Breathtaking Korean bowls, and a couple of Japanese bowls. They were just amazing to hold (and maybe a little bit of fondling happened too, but mum’s the word).
